LadderDIP IV Firmware Upgrading Procedure
PLEASE CAREFULLY FOLLOW ALL THE INSTRUCTION TO UPGRADE YOUR LadderDIP IV FIRMWARE
WHAT I NEED TO EXECUTE A FIRMWARE UPGRADE
To upgrade the firmware i need
| • | FlashMagic software (http://www.flashmagictool.com/) |
| • | BRT1L USB/ISP Adapter (FTDI driver needed) |
| • | The updated BIN/HEX firmware file (Supplied by LadderDIP IV Manufacturer) |
|
VERY IMPORTANT
The firwmare update MUST be executed with the LadderDIP IV module completely disconnected by any other cable or board. ONLY THE BRT1L ADAPTER MUST be attached to the LadderDIP IV module |

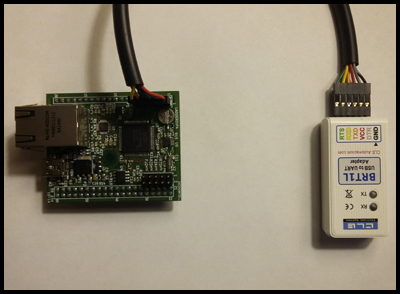

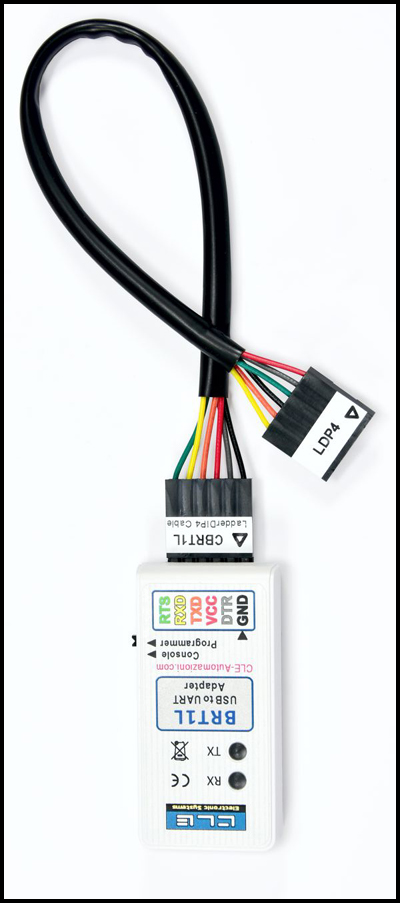

STEP 1) CONNECT THE MODULE TO THE BRT1L ADAPTER LIKE SHOWN IN THE PICTURES

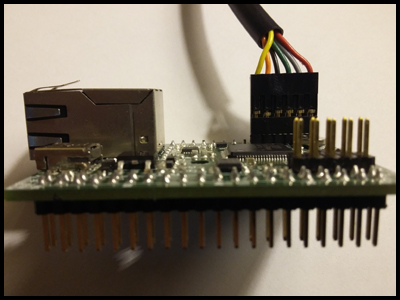

PLEASE RESPECT PINS COLORS AND POLARITIES
STEP 2) USE FLASHMAGIC TO BURN THE FIRMWARE INTO THE MODULE

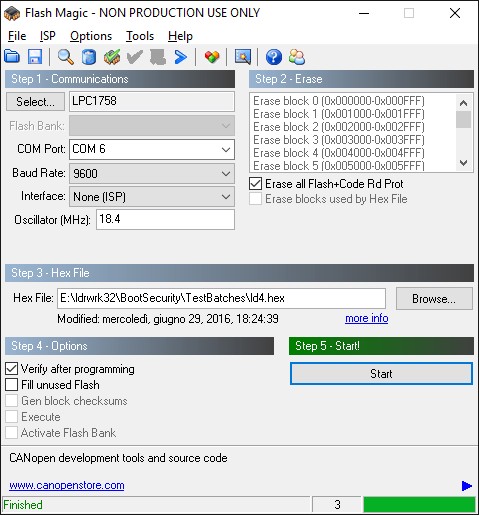

Launch the FlashMagic software and configure as indicated here
Configure FlashMagic as indicated here
| • | Select the "LPC1758" part |
| • | Select Interface = ISP |
| • | Select Oscillator = 18.4Mhz |
| • | Valid baud rates are 9600 up to 115200 |
| • | Select the port related to the BRT1L adapter |
| • | Check the "Erase all Flash+Code Rd Prot" |
| • | Check "Verify after programming" |
| • | Enter the path of the firmware hex file |
| The LadderDIP IV module is powered by the adapter, YOU DO NOT and YOU DO NOT HAVE TO connect any other cable. The module MUST be ALONE |
| Once you configured you can press the <Start> button and wait for a successful programming |

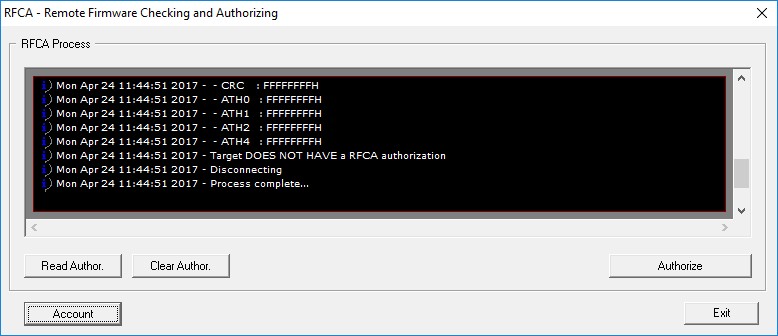

| RFCA PROCEDURE |
| Once you have upgraded the new firmware into the module a further operation is needed, this is called RFCA (Remote Firmware Checking and Authorizing) |
| //configuration//ide//rfca_access |
| <rfca_access_enable value="purpleCode"/> |
| <configuration> |
| <ide> |
| <rfca_access> |
| <rfca_access_enable value="purpleCode"/> |
| </rfca_access> |
| </ide> |
</configuration>
USER |
ld4guest |
PSW |
jupiter |
MNFRID |
369-979-939 |
