Pin Configuration

To configure the I/O properties (Function, direction and polarity) you have to access the Options Configuration menu.

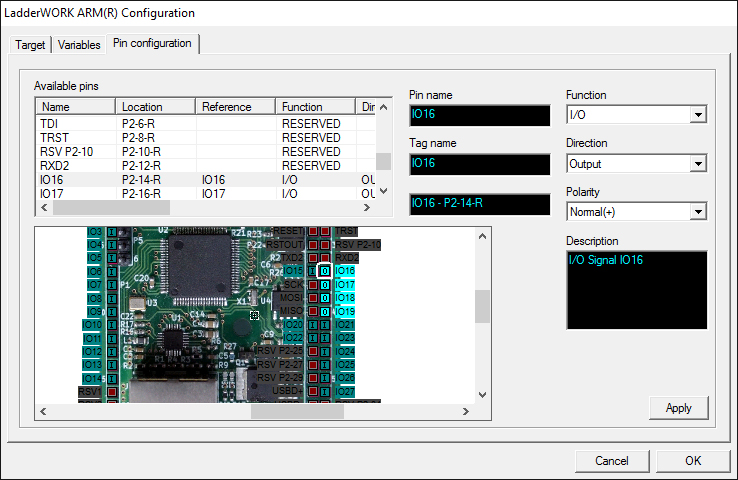

The following Dialog will appear

To configure a pin property you can select the resource by clicking in the "Available Pin" list or directly on the picture.

To change the configuration of a pin use the three combo boxes named "Function", "Direction" and "Polarity" and press "Apply"
