What is LadderDIP IV Development Board
|
|
|
|
What is LadderDIP IV Development Board
|
LadderDIP IV Development Board is a kit that allow you to transform LadderDIP IV into two different forms
| • | A complete Development Board for the LadderDIP IV |
| • | An industrial-proof enclosure that allow you to convert the LadderDIP IV module into a professional rugged-grade PLC |

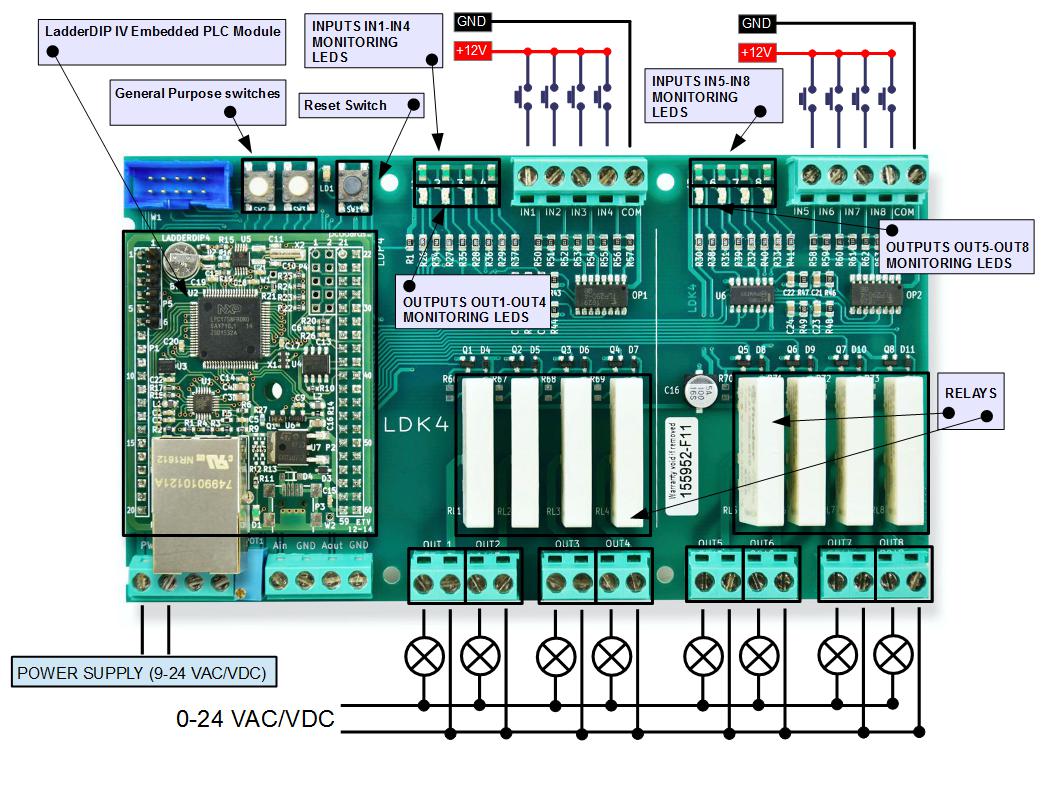

Let's take a look to the LadderDIP IV Development Board board

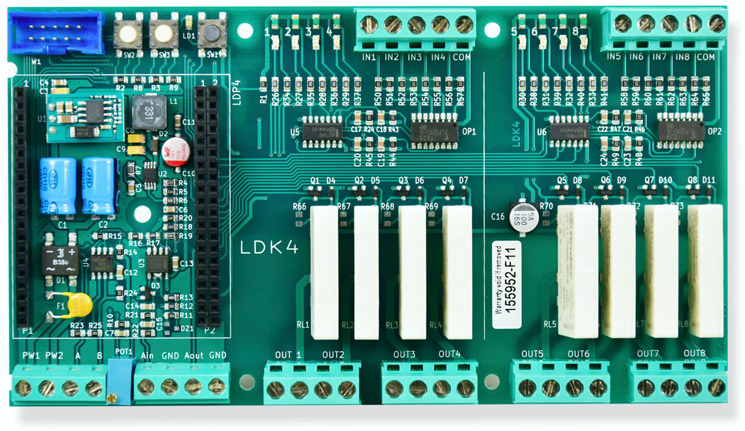

The LadderDIP IV Development Board acts like a "mother-board (or backplane)" for the LadderDIP IV Development Board module
The board gives the following features
| • | 9-24 Wide Range VAC/VDC Power Supply |
| • | 8 x 250VAC 6A Relay with LED Monitoring |
| • | 8 x Insulated Inputs 9-24 VAC/VDC with LED Monitoring |
| • | 2 x General Purpose Switch |
| • | Reset Button |
| • | 1 x Analog Input (0..10V) |
| • | 1 x On-Board Trimmer (Connected to LadderDIP Analog Input AIN6) |
| • | 1 x Analog Output (0..10V) |
| • | RS485 expansion |
