The DELAY device generates delayed signals respect to the input signal. Two kinds of functionality are available : DELAY MODE or HOLD MODE. In DELAY MODE a pulse applied on its input generates a single pulse after the programmed time. In HOLD MODE a pulse on its input activates the output for all the programmed time.
There is the possibility to condition the behavior of the device for the pulses following the first trigger pulse. Using the NO RETTRIGERABLE option the pulse following the first trigger pulse will be ignored. With the RETTRIGERABLE option set, the elapsed time will be cleared every time a rising-edge is recognized on the input so the time-past event will take place starting from the last pulse.
DELAY device, like CLOCK and DEBOUNCE , are SYSTEM TIMER dependant.
For further information see TIMING RESOLUTION .
Property settings
Parameter |
Description |
DELAY TIME |
Delay time expressed in seconds |
|
|
MODE |
Selects HOLD MODE or DELAY MODE |
|
|
TRIGGER MODE |
The behavior of the DELAY device to pulses that follows the first pulse can be changed through this parameter ( See description ) |
Net plugs
Plug |
Description |
INPUT |
Delay input. This pin is raising-edge sensitive |
|
|
OUT |
The delay output |

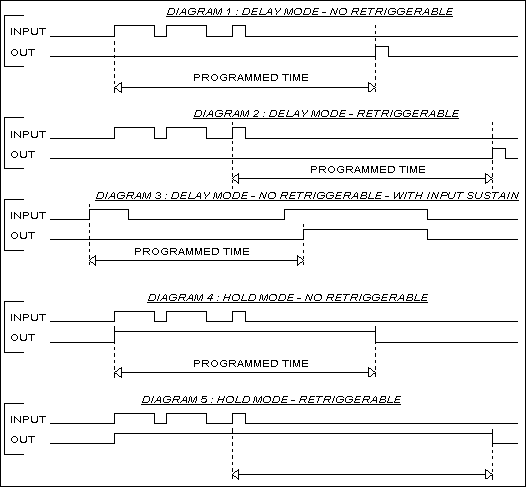

Timing Diagrams
See also : TP, TON, TOF, TMI, TSQ
