Connecting and powering my module

Return to Introduction  Previous page  Next page





In order, to work as standalone module, LadderDIP IV needs two essential connections



A 5V DC power supply
An Ethernet connection (10/100 Mbits)

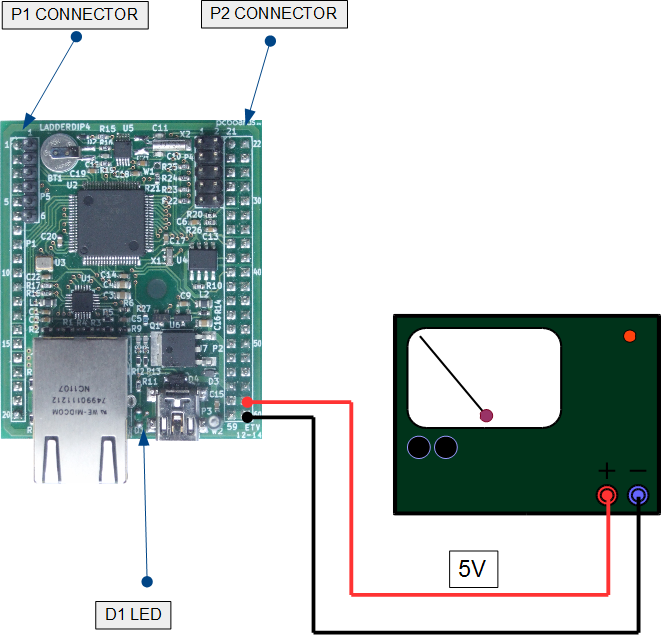

Power supply must be connected to:



Pin P2-38 (+5V) - (Marked as "58" in the right side of the double line connector P2)
Pin P2-40 (GND) - (Marked as "60" in the right side of the double line connector P2)





ld4_powersupply



Once you have powered-up the module the D1 led will perform some initial flashing
