My basic LadderDIP IV connection

Return to Introduction  Previous page  Next page

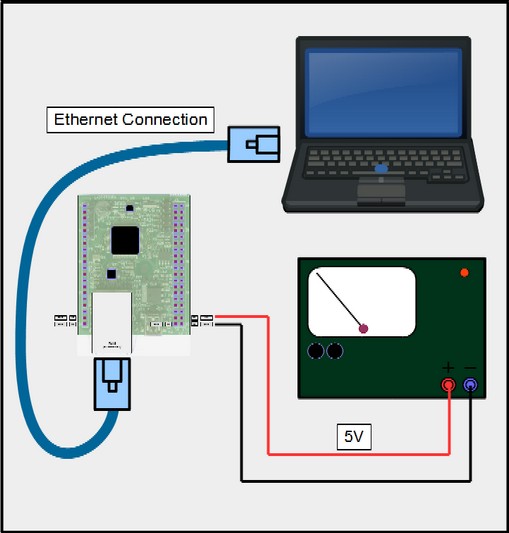

The picture below represent the basic <%PRODUCTNAME%> connection used for development. To work with the module you just need to provide the power supply and the Ethernet connection



basic_connection
