LadderDIP IV - Embedded PLC Module (EPLC)



Quick page links:
LadderDIP 4 Presentation
Buy from CLE
Buy from The Debug Store
LadderDIP 4 Overview
Related Documents

LadderDIP 4 Overview

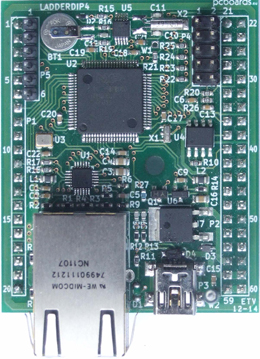

LadderDIP 4 is an innovative controller module based on a ARM(R) 100MHz processor with 100 MIPS (Million Instructions Per Second) peak performance.
This core module will allow you to build complete PLC (Programmable Logic Control) systems to fit your companies needs using the remarkable power and simplicity of our LADDER language as the PLC programming language.
LadderDIP 4 comes with our most versatile LADDER development environment, LadderWORK®.

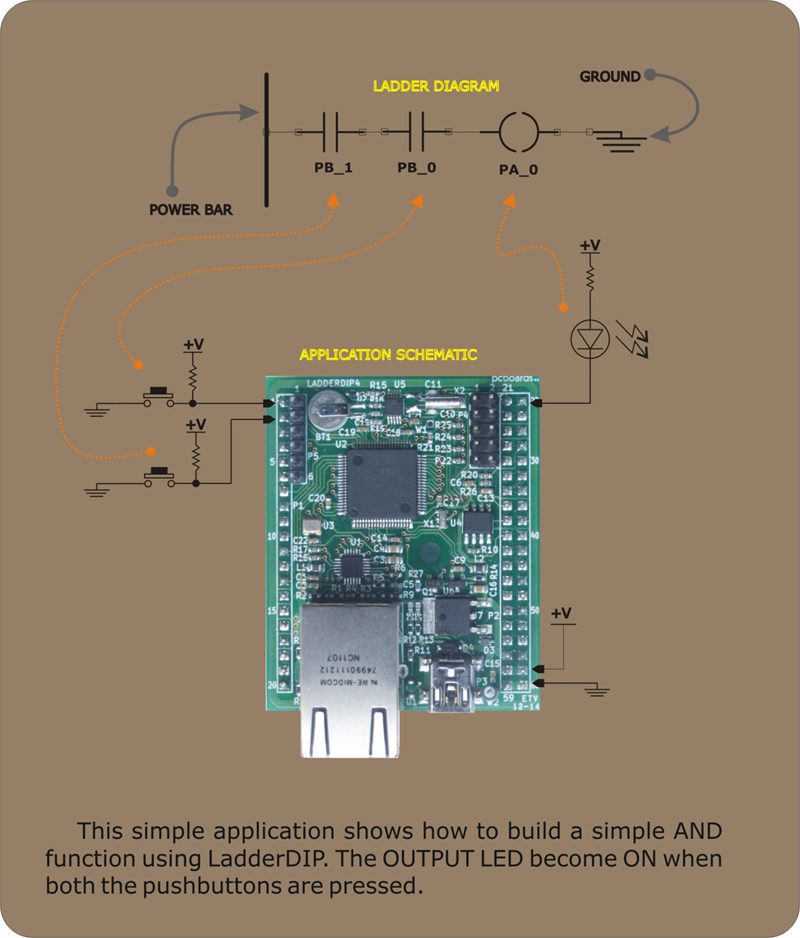

What this means to you is that you don’t need to know anything at the microprocessor level such as the assembler, interrupts or hardware architectures. This is all done for you saving you time and money. All you have to do is program the PLC in the familiar LADDER electrical scheme incorporating switches as inputs, relays (memory functions) and lamps as outputs.
Finally, a workable solution to control automation realized in a few thoughtful minutes with LadderDIP.

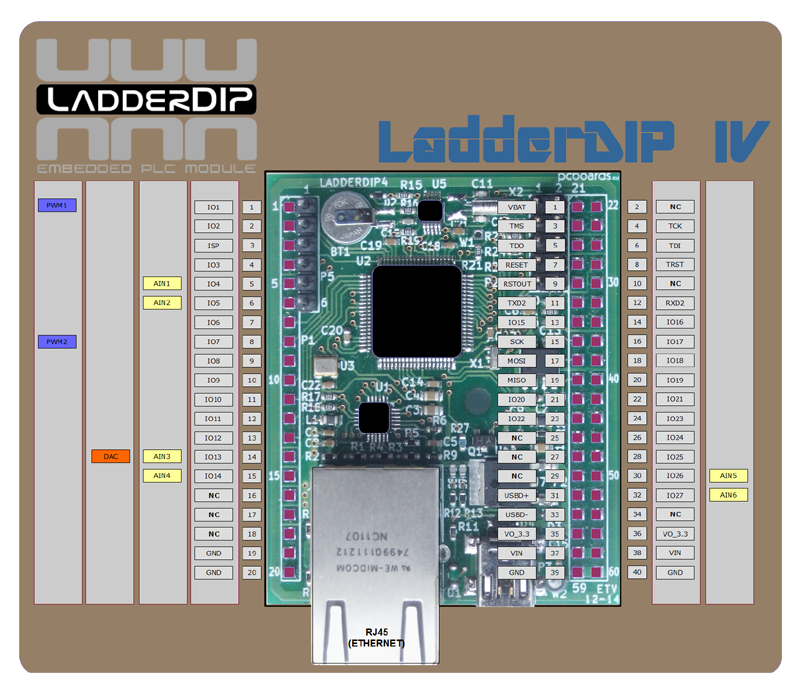

LadderDIP 4 is packaged on a 100 mils (2.54mm) 60-pins socket giving up to 27 bits of general purpose I/O, 6 A/D input channels (10 bits), 1 DAC (10 bits) and two PWM outputs.
LadderDIP 4 is connected and programmed using it native 100mbit ethernet port.
The module provide 32K of Ladder user code and 4K-WORDS of user memory


LadderDIP 4 is supported by LadderDIP PLC Studio. This software is compliant with IEC/CEI 1131-3 directive and allow you to program in LADDER and FBD Language
